3. Navigating Gadi File System

Overview

Tutorial: 30 min

Objectives:

• Learn how to use the Gadi terminal.

• Learn how to navigate the filesystem.

• Learn how to manage files and directories.

• Learn how to copy files to and from Gadi.

This page introduces essential commands to get you started on Gadi. For a more detailed guide, see the Linux Command Quick Reference. If you are completely new to Linux, we recommend you to go over the The Unix Shell first.

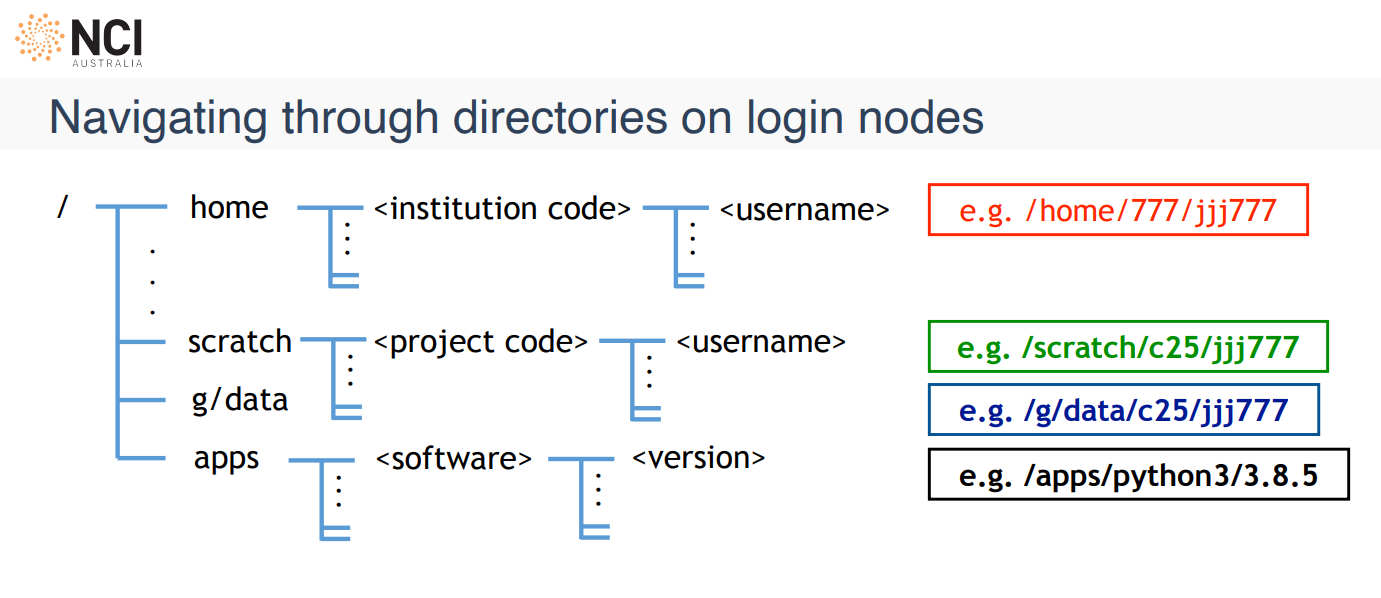

3.1. Gadi File System

---

Gadi File System Overview

Location	Purpose	Backup / Quota	Notes
/home	Personal user space	Backed up 10 GiB per user	Store important and hard-to-reproduce files. Meant for config and critical content only.
/scratch	Project space, high performance	Not backed up Project quota 100 days expiry	Fastest storage. Temporary: files deleted after 100 days of no access. Use for raw experimental output.
/g/data	Permanent long-term project space	Not backed up (unless mirrored) Project quota	Store large datasets, input/output, code. Managed by institution/scheme. Persistent storage for research.
/apps	Centrally provided software	Managed by NCI Read-only	Contains installed software modules and applications for all users.
/mdss	Archival, backed-up storage	Backed up Managed by scheme	Uses magnetic tape. For archiving important files requiring infrequent access.

Knowledge Check 1: The Storage Dilemma

Scenario: You have a 500GB dataset that you need to analyze over the next three days. You plan to run 10 different jobs against this data.

Question: Which file system should you store the data in while the jobs are running, and why?

A) /home: Because it is the most secure.

B) /scratch: Because it is high-speed and designed for large-scale temporary processing.

C) /g/data: Because it is where my project is hosted.

Show answer

Answer: B) /scratch. While /g/data is great for long-term storage, /scratch is optimized for the high-speed I/O (Input/Output) required during active job execution. Just remember to move your results back to /g/data when done!

3.2. Understanding your location (pwd)

Your current directory is where terminal commands run. pwd (print working directory) shows its full path.

pwd

3.3. Listing files (ls)

General syntax of a command:

ls lists files and folders in the current directory.

Detailed list view with permissions, size, and timestamps:

ls -l

Human-readable sizes (easier when checking large files):

ls -lh

Show hidden files (names starting with .):

ls -a

Hint

Use ls --help anytime you need option names and short descriptions.

3.4. Practice: Find your bearings

Exercise

• Find out what directory you are in and list the files and directories there.

• Then list contents with sizes in a human-readable form, sorted by size. Hint: check ls --help for sorting options.

See solution

pwd
ls
cd /scratch/vp91/$USER
ls -lhS

3.5. Changing directory (cd)

Move to an absolute path:

cd /path/to/directory

Go up one level:

cd ..

Jump to your home directory:

cd ~

3.6. Practice: Explore shared locations

Exercise

• Go to /scratch/vp91/$USER and see where it is.

• In separate visits (cd, ls, then cd somewhere else), look at what is under /apps, /scratch, and /g/data. These are important areas on Gadi; you don’t need to understand everything yet—just get a sense of how they’re laid out.

• Find out the latest version of python3 available in /apps. How would you sort the files to find the latest version?

See solution

cd /scratch/vp91/$USER
pwd
ls
cd /apps
ls
ls -lht /apps/python3

3.7. Managing files and directories

mkdir: create a directory

mkdir test

touch: create an empty file (or update a file’s timestamp if it exists)

touch test.txt

rm: delete files (no “rubbish bin” on the cluster — see the warning below).

Remove one file:

rm test.txt

Remove a directory and everything inside (use carefully):

rm -rf test

cp: copy files or directories

Copy file1 to file2:

touch file1.txt
cp file1.txt file2.txt

Copy a directory recursively:

mkdir dir1
cp -r dir1 dir2

mv: move or rename files and directories.

Rename file:

mv file1.txt renamed.txt

Move a directory inside another directory:

mv dir1 dir2

Delete with caution

There is no Trash folder to restore from once a file is removed. Backup tools exist, but rely on backups you made yourself — there is no guarantee of recovery here. Prefer rm on copies or test folders until you’re confident.

3.8. Viewing and editing text

cat: print whole file contents to the terminal:

cat file.txt

less: scroll through a large file interactively (press q to quit):

less file.txt

nano: simple terminal editor:

nano file.txt

vim: more powerful modal editor:

vim file.txt

3.9. Practice: Create, inspect, tidy up

Exercise

Under /scratch/vp91/$USER:

• Create a directory called hello_world.

• Create a file hello_world/hello_world.txt and put Hello, World! inside it (your editor choice, or redirect from echo if you prefer).

• Display the contents in the terminal, then delete the file and folder when you’re done.

See solution

cd /scratch/vp91/$USER
mkdir hello_world
# or using nano, vim, or another editor:
# nano hello_world/hello_world.txt
echo "Hello, World!" > hello_world/hello_world.txt
cat hello_world/hello_world.txt
rm -rf hello_world

3.10. Copying files to and from Gadi (scp)

scp copies files over SSH—useful for moving scripts or outputs between your laptop and Gadi.

Copy from your computer to Gadi:

scp local_file YOUR_USERNAME@gadi.nci.org.au:/remote/path/

Copy from Gadi to your current local folder:

scp YOUR_USERNAME@gadi.nci.org.au:/remote/path/file .

3.11. Practice: Prepare the code for your first job on Gadi

Exercise

1. Create /scratch/vp91/$USER/first_job.

2. Save hello_mpi.c onto your laptop, then upload it into first_job with scp (adjust paths and username to match yours).
